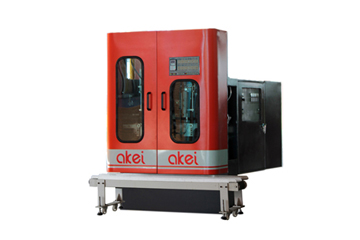

銆�銆�Compact, swift, stable, precise, low power consumption and high degree of automation are attributes well suited to describe the SB-40-TS. The standard 40mm extruder screw makes it ideal for the production of containers ranging from 5ml to 100ml. This model has been used to produce containers in the medical, cosmetic, body care and office stationary industries for more than three decades.
銆�銆�The extrusion system of this model can be configured in multiple heads and is capable of processing a wide range of materials such as HDPE, PP, PA, EVOH, EVA, Surlyn, PVC, PET-G, PS, PCT-G, ABS and their derivatives. Final products and excess material can be collected manually or automatically via conveyors.
銆�銆�With a dry cycle time of 3 seconds, this model is known in the industry as the fastest machine in its category. The SB-40-TS boasts a recorded track record of producing 70,000 containers in 24 hours based on the following product data:
-Volume: 25ml
-Net weight: 4gr
-Material: HDPE 5502
-Machine configuration: 3 + 3 (triple head)
-Production efficiency rate: 98%
|
